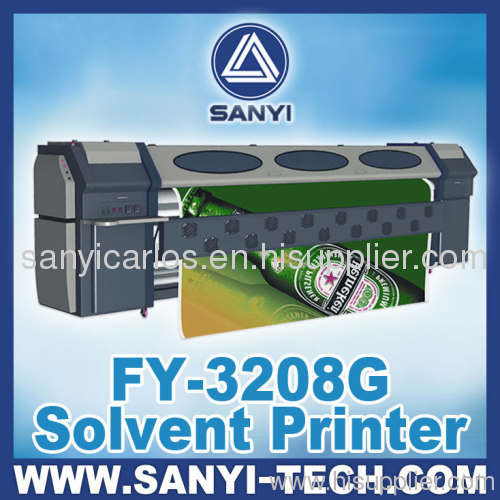

Solvent Printer FY-3208G (With 8 pcs Seiko SPT510 35PL Printhead)

Price:	1.0 USD
Payment Terms:	T/T
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FY-3208G

Packing: wooden case

Plate: Others

Color & Page: Multicolor

Brand Name: Infiniti

Production Capacity: 100

Delivery Date: 7 working days

Type: Digital Printer

Usage: Others

Infiniti FY-3208G
Solvent Printer
Seiko SPT510 35PL Printhead
Resolution: 720 dpi
3.2m Printing Width

Product Model	FY-3208G
Printhead	SPT510-35PL
Number of Printhead	8 Heads
Maximum Print Width	3200mm
Output (m2/h)	Print mode	Standard Output (m2/h)
	360x360 1 pass	101
	240x720 2 pass	76
	240x1080 3 pass	51
	360x1080 3 pass	34
	720x720 4 pass	26
Ink	Type :	Solvent Ink / Mild SolventInk
	Color :	4 Colors( C , M , Y , K )
	Capacity :	1L or 5L per Main Tank ofEach Color
	Ink Supply System :	Low Ink Detector, Auto or ManualInk Supply System
Media	Width :	3300mm
	Type :	Vinyl, Flex, Polyester, Back-litFilm, Window Film, etc
Auto Media Feeding System	Equipped ( Max. MediaWeight 80kg )
Auto Cleaning System	Individual PositivePressure Cleaning Anti-clogged Flash Function& Capping System
Pre-heating & DryingSystem	Equipped
Clamp	Equipped
Print Interface	Optical Fiber
Printhead Height	2 to 6mm Above Media Adjustable
RIP Software	Maintop , UltraPrint ,PhotoPrint , Topaz , Wasatch , Caldera
Input Power	AC 220V , 50Hz/60Hz
Machine Dimension	L4600 x W820 x H1320 mm Net Weight : 482Kg
Package Dimension	L4650 x W970 x H1600mm Gross Weight : 770Kg
Operation Environment	Temperature : 20℃—28℃ Humidity : 40%—60%

Features of solvent printer FY-3208G

1) Seiko Instrument Group SPT printhead, 510 nozzles per printhead.

2) The voltage of the printhead is able to adjust automatically depending on the temperature. This will solve the problem on nozzle clogging under huge temperature change.

3) The function of skipping white space is added to increase productivity.

4) The adjustment of bi-direction, step and carriage moving speed can be modified during printing.

5) Edge feather function can blur the pass line and feather pass edge.

6) Well designed alloy-aluminum girder is installed to decrease the noise during printing. Achieve the perfect quiet working environment.

7) Photoprint / Maintop / Wasatch software provide user-friendly interface and handy function with two types of printing.

8) 100% single color black is used on printing black text to avoid mixture of color.

9) Control system has the function of resuming printing after the power is cut off. This helps you to save unnecessary loss of cost.

10) The powerful suction fans equipped under the printing platform to avoid the collision between the carriage and the media, high resolution can be obtained
